Robot na jigilar SDCXRB-03A1/RB06-900/RB08/RB08A3-1490/RB08A3-1700/RB08A3-1840/RB10/RB20/RB50/RB130/RB165/RB210

A takaice gabatarwar samfurin

Sufuri masana'antu mutummutumi da aka yafi amfani a nika, polishing, loading da blanking uwa/daga inji kayan aikin, atomatik sufuri don stamping atomatik samar Lines, da dai sauransu The sufuri mutummutumi wani atomatik samfurin wanda yana amfani da robot ta motsi hanya don maye gurbin manual sufuri.Amfaninsa shine yana iya aiwatar da kowane nau'in ayyukan da ake tsammani ta hanyar tsarawa.Yana haɗa fa'idodin duka ɗan adam da na'ura a cikin tsari da aikin sa, musamman haɗar hankali da daidaitawa.

TUNTUBE MU

Cikakken Bayani

Tags samfurin

Ma'aunin Fasaha

Model No.		Digiri na 'Yanci	Yanayin tuƙi	Kayan aiki (kg)	Matsakaicin daidaitawa mai maimaitawa (mm)	Kewayon motsi (°)						Matsakaicin gudun (°/s)						Matsakaicin karfin juzu'i (N.m)			Radius na motsi (mm)	Nauyin Deaa (kg)
Model No.		Digiri na 'Yanci	Yanayin tuƙi	Kayan aiki (kg)	Matsakaicin daidaitawa mai maimaitawa (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Radius na motsi (mm)	Nauyin Deaa (kg)

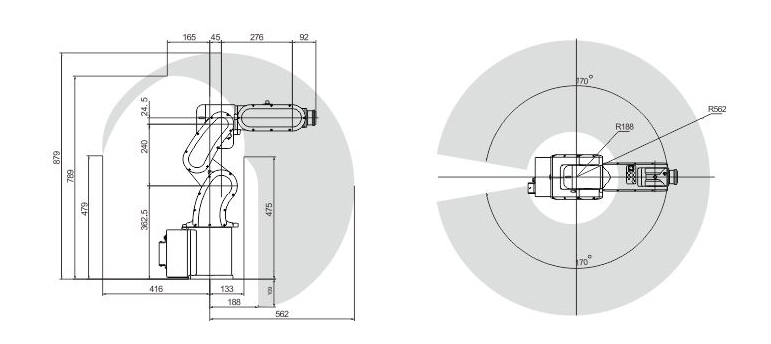

Saukewa: SDCX-RB03A1		6	AC servo drive	3	± 0.02	± 150	+136-51	+ 64-131	±150	±120	±360	375	375	419	600	600	750	9.3	9.3	4.5	562	36
Saukewa: SDCX-RB06-900		6	AC servo drive	6	± 0.03	± 170	+ 135-100	+ 155-110	± 170	± 120	± 360	337.5	270	375	300	375	468	12	10	6	900	60
Saukewa: SDCX-RB08		6	AC servo drive	8	± 0.05	± 170	+120-85	+75-155	± 180	± 135	± 360	154	154	154	420	252	620	14	12	7	1389	180

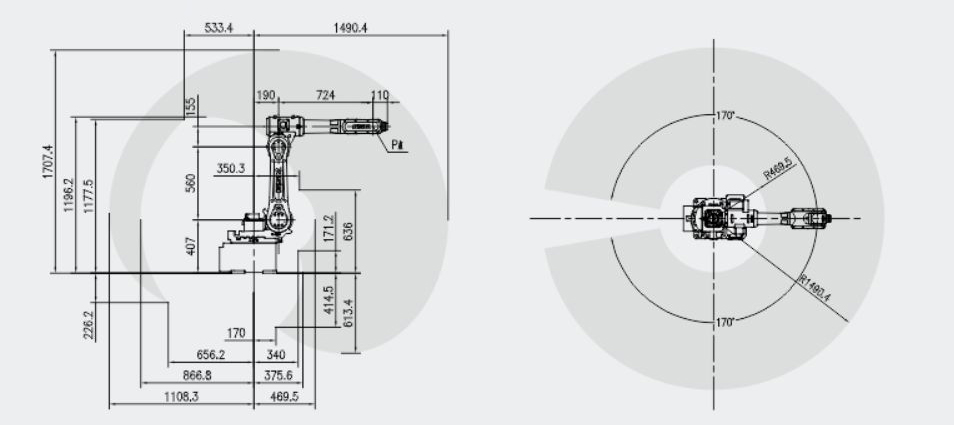

Saukewa: SDCX-RB08A3-1490		6	AC servo drive	8	± 0.05	± 170	+120-85	+ 83-150	± 180	± 135	± 360	200	200	200	400	356	600	14	12	7	1490	185
Saukewa: SDCX-RB08A3-1700		6	AC servo drive	8	± 0.05	± 170	+120-85	+ 83-150	± 180	± 135	± 360	180	180	180	400	356	600	14	12	7	1700	187
Saukewa: SDCX-RB08A3-1840		6	AC servo drive	6	± 0.05	± 170	+120-85	+ 83-150	± 180	± 135	± 360	160	160	160	400	356	600	14	12	7	1840	180
Saukewa: SDCX-RB10		6	AC servo drive	10	± 0.05	± 170	+150-85	+ 85-170	± 360	± 120	± 360	200	160	200	360	360	600	43.2	43.2	25.4	1550	240
Saukewa: SDCX-RB20	Saukewa: SDCX-RB06-2060	6	AC servo drive	6	± 0.05	± 170	+145-100	+75-165	± 180	± 135	± 360	165	165	170	300	356	600	40	12	7	2060	285

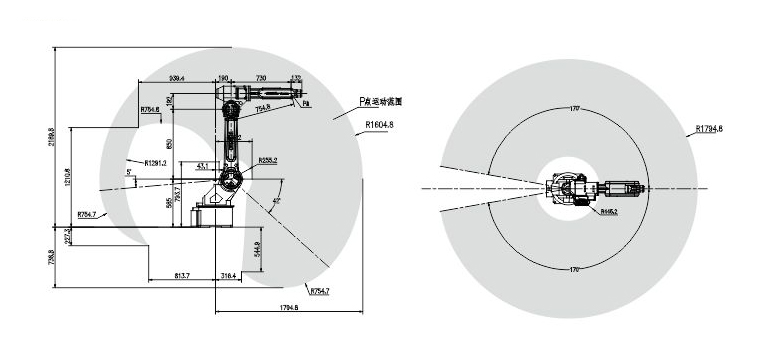

	Saukewa: SDCX-RB15L	6	AC servo drive	15	± 0.05	± 170	+145-100	+75-165	± 180	± 133	± 360	165	165	170	300	198	394	40	50	22	1794	300
	Saukewa: SDCX-RB20	6	AC servo drive	20	± 0.05	± 170	+132-95	+ 73-163	± 180	± 133	± 360	165	165	170	300	198	394	40	50	22	1595	290
Saukewa: SDCX-RB50		6	AC servo drive	50	± 0.05	± 178	+130-90	+75-200	± 360	± 115	± 360	171	171	171	215	251	365	196	196	127	1956	600
Saukewa: SDCX-RB130		6	AC servo drive	130	± 0.20	± 175	+75-60	+ 80-185	± 360	± 115	± 360	100	94	104	165	174	238	951	951	490	2715	1420

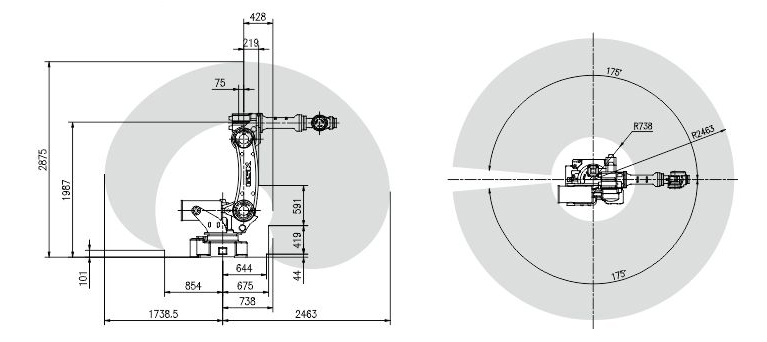

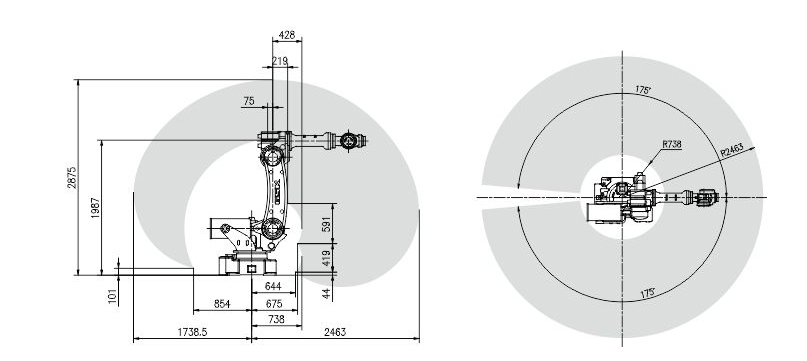

Saukewa: SDCX-RB165		6	AC servo drive	165	± 0.20	± 175	+75-60	+ 80-185	± 360	± 115	± 360	100	94	104	152	160	220	951	951	490	2463	1400
Saukewa: SDCX-RB210		6	AC servo drive	210	± 0.20	± 175	+75-60	+ 80-185	± 360	± 115	± 360	100	94	104	144	118	200	1274	1274	686	2463	1430
Saukewa: SDCX-RB300		6	AC servo drive	300	± 0.20	± 175	± 55	+116-85	± 360	± 115	± 360	85	95	95	120	120	180	1274	1274	686	2508	1500

Guji hulɗa da iskar gas da ruwa masu ƙonewa, fashewa da lalata;Yi don kada a yayyafa shi da ruwa, mai da ƙura;Nisanta daga tushen hayaniyar lantarki (plasma)
